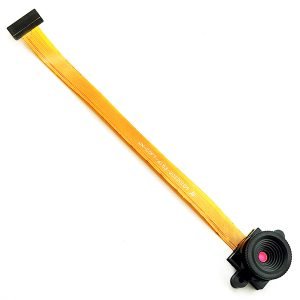

GC6153 QVGA DVP Camera Module
Weinan Electronics this QVGA DVP camera module adopts the 1/13-inch GC6153 CMOS image sensor with active pixels of 240×320. 18° FOV, 20-PIN DVP interface.
The GC6153 is a highly integrated CMOS image sensor, active pixel is 240 x 320. GC6153 outputs YUV/YCrCb 4:2:2 or RGB 565 data through the serial data bus. GC6153 supports SPI interface.
The on-chip ISP provides a very smooth AE (Auto Exposure) and accurate AWB (Auto White Balance) control. It has a commonly used two-wire serial interface for host to control the operation of the whole sensor.
Module Main Parameters
- ◐ FPC Length: 90mm
- ◐ Image Sensor: 1/13-inch GC6153 CMOS Sensor
- ◐ Active Pixels: 240 x 320
- ◐ Pixel Size: 2.5*2.5μm
- ◐ ADC Resolution: 10 bit ADC
- ◐ Max. Frame Rate: QVGA 30FPS
- ◐ Power Supply: AVDD28: 2.7-3.0V(Typ.2.8V)
- ◐ Power Consumption: <67mW@30fps QVGA, <2mW@standby
- ◐ SNR: 39.2
- ◐ Dynamic Range: 65.7dB
- ◐ Interface: 20-PIN DVP Interface
Camera Module Applications
Weinan Electronics camera modules have a wide range of applications like ATM machine, kiosk, automatic vending machine, robot, sanner, virtual reality, medical equipment, machinery equipment, smart TV BOX, advisement player, safety box, notebook, tablet, video door phone, on-the-spot law enforcement, simple security system, teaching system, interactive system, attendance machine, voting system, exam system, driving learning system, biological microscope, micro HD surveillance, endoscope, medical auxiliary equipment, etc.
Customization Service
Can’t find a camera module to fully meet the actual needs of your project? At Weinan Electronics, attentive customization service will definitely help you achieve reliable product vision.
Modification on Off-the-shelf Modules
If our ready made camera modules almost meet your expectations and you need it to be better tailored to your projects, you can contact us for modification.
Complete Customization
Based on our experienced and skilled R&D team, we can provide turnkey solution including mechanical design, hardware, embedded firmware, extra functions.
