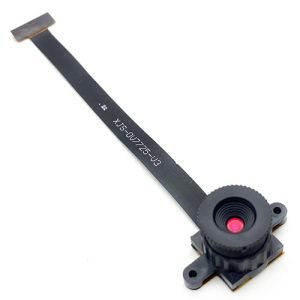

OV7725 VGA DVP Camera Module
Weinan Electronics this VGA DVP camera module adopts the 1/4.0-inch OV7725 CMOS image sensor with active pixels of 640×480. 72° FOV, 24-PIN DVP interface.
The OV7725 image sensor is a low voltage CMOS device that provides the full functionality of a single-chip VGA camera and image processor in a small footprint package. The OV7725 provides full-frame, sub-sampled or windowed 8-bit/10-bit images in a wide range of formats, controlled through the Serial Camera Control Bus (SCCB) interface.
This device has an image array capable of operating at up to 60 frames per second (fps) in VGA with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control and more, are also programmable through the SCCB interface.
Module Main Parameters
- ◐ FPC Length: 82mm
- ◐ Image Sensor: 1/4-inch OV7725 CMOS Sensor
- ◐ Active Pixels: 640 H x 480 V
- ◐ Pixel Size: 6*6μm
- ◐ Field of View: 72°
- ◐ TV Distortion: <5%
- ◐ Focusing Range: 20cm-0.6m (AT0.6M)
- ◐ F/NO.: 2.4
- ◐ EFL: : 3.5mm
- ◐ Shutter Mode: Electronic Rolling Shutter
- ◐ Interface: 24-PIN DVP Interface
Camera Module Applications
Customization Service
Modification on Off-the-shelf Modules
If our ready made camera modules almost meet your expectations and you need it to be better tailored to your projects, you can contact us for modification.
Complete Customization
Based on our experienced and skilled R&D team, we can provide turnkey solution including mechanical design, hardware, embedded firmware, extra functions.
